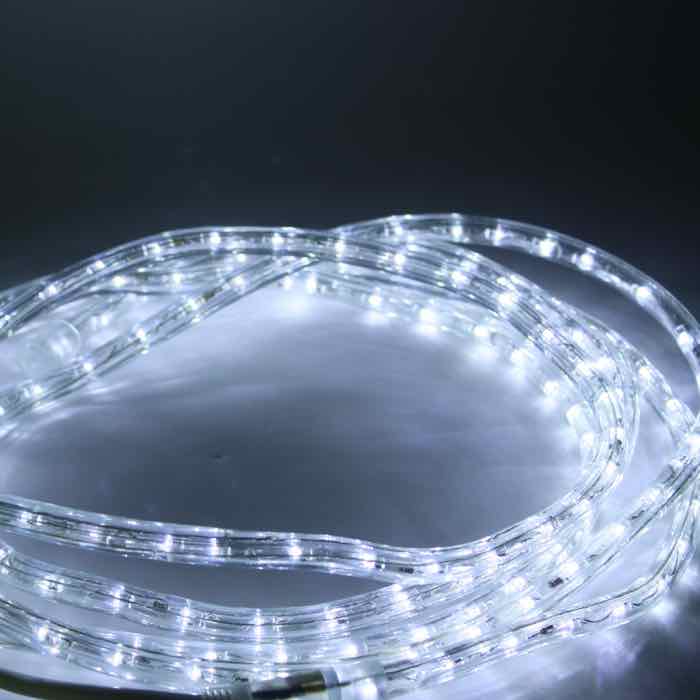

Specifications and Dimensions
Glass or LED | LED | Material | PVC |
Rope Light Size | 10mm (3/8") | Maximum Connection | 150 feet |

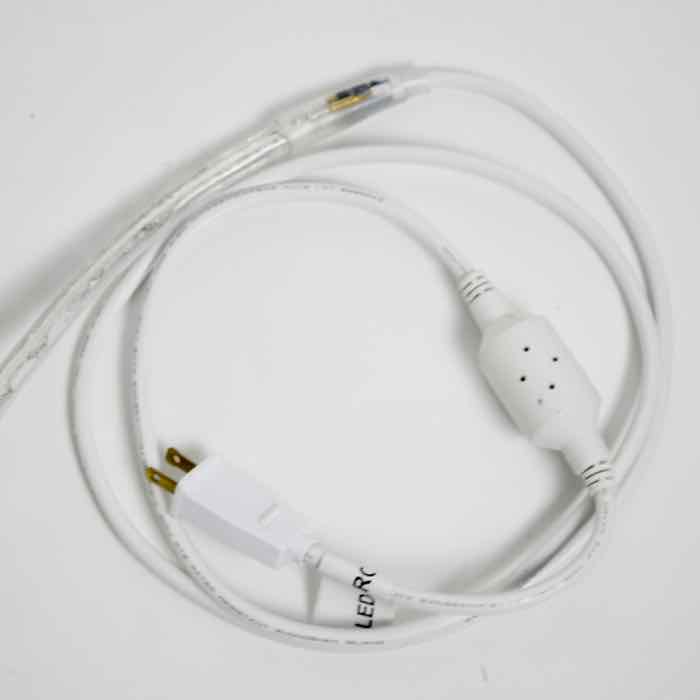

Bulb Color | Pure White | Connection | 2-Wire, Power connector with attached male plug must be installed on each run of light |
Tube Color | Clear | Warm Up During Operation | No |
Rope Bulb Count | 1800 | Dimmable | No |
Rope Socket Spacing | 1" Bulb Spacing | Fuse | 5A/125V |
Replaceable Bulbs | No | Voltage | 110V/ 120V |
Total Length | 150 feet, approx. | Watts | .73W/foot |

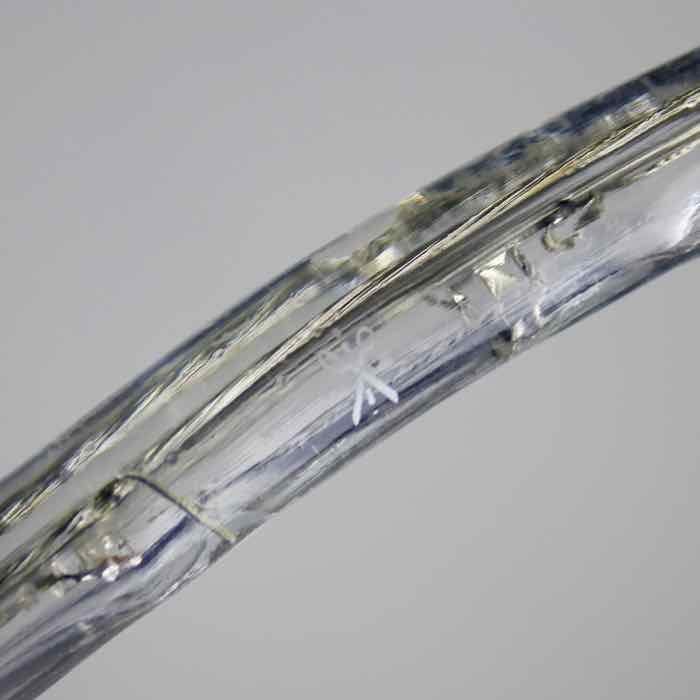

Minimum Rope Length | Cut in 54" lengths at cut-marks. | AMPS Usage | 1.34A/150 feet |
Includes | One power cord installed at end of rope light and 3 additional kits (power connectors, cords, end caps, clips) | What if a bulb burns out? | If a bulb fails, remaining bulbs should stay lit. If a section fails, replace it by splicing in a new section of rope light. Length of section determined by cut-marks. |

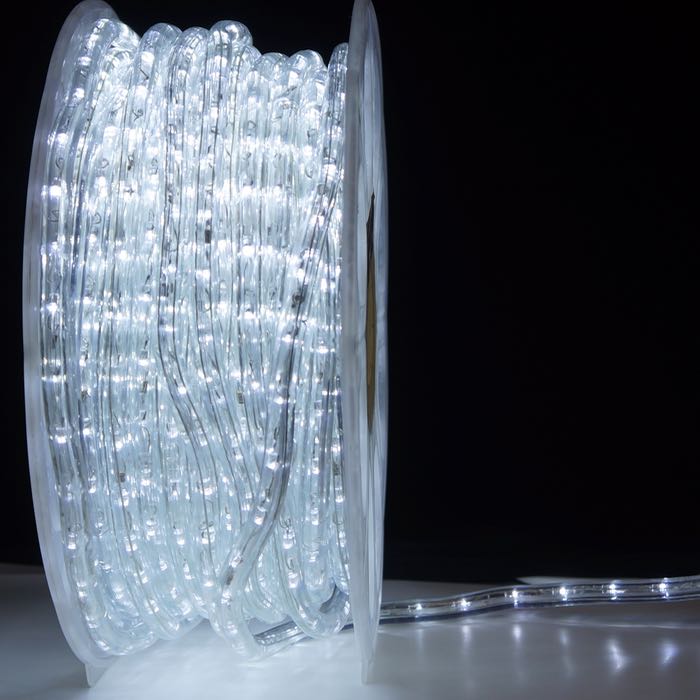

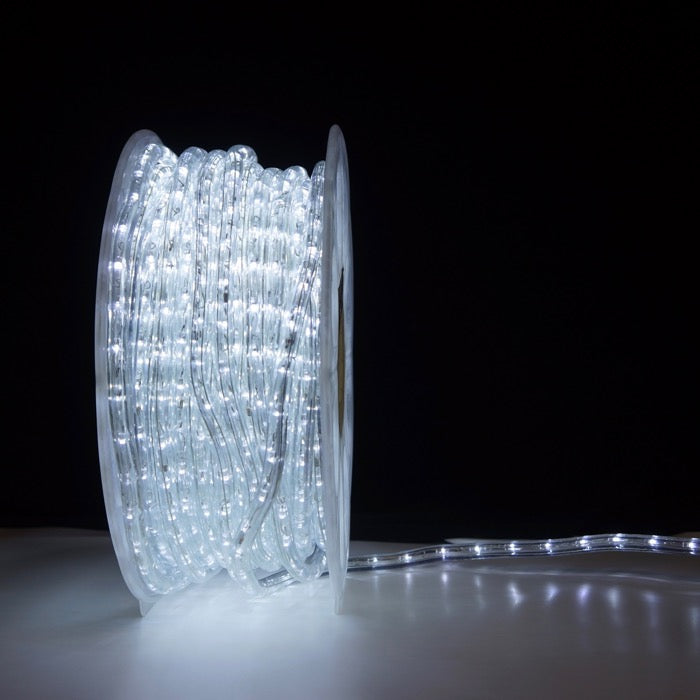

Package Style | Bulk Spool | Diameter | 3/8 inch |
Application | Indoor/Outdoor | Potential Lifespan Estimate | 35,000 hours |

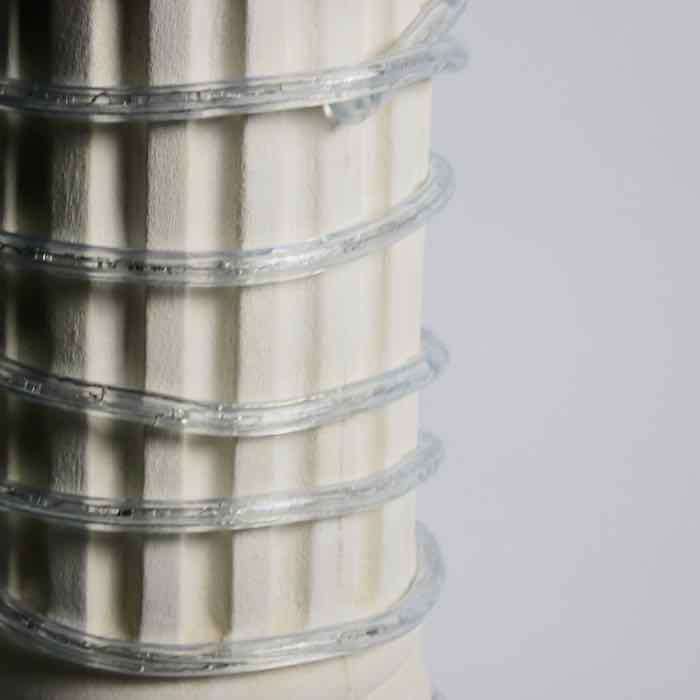

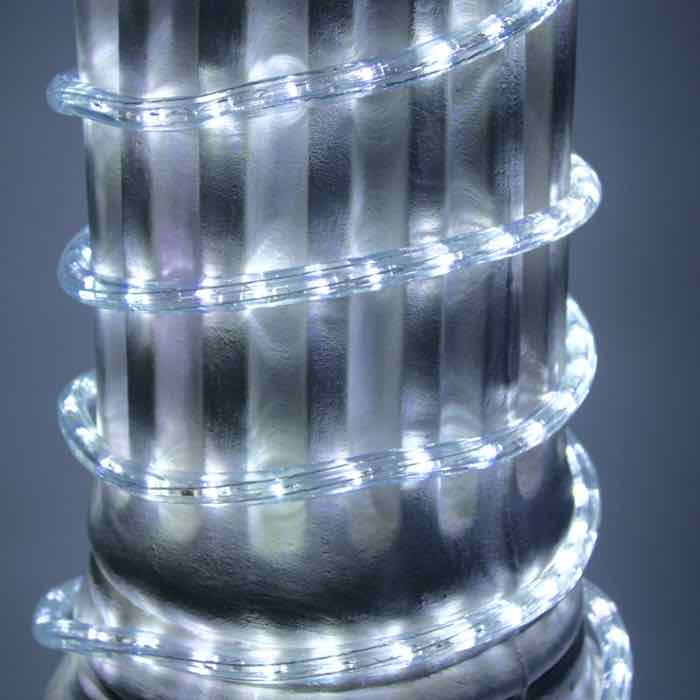

Additional Info | Floating connectors. This rope light can be wrapped around small columns but bending too small of a radius can interrupt the electrical connections. | Warranty | 90 Days of Normal Seasonal Use |
Additional Info | Steady Burn Only; Temperature resistant from -68 to +140F; Withstands up to 220 PSI. | Additional Info | UV Stabilized |
Handy Guide | Assembly Instructions | Additional Info |
For CA Residents: Prop 65 Notice
Questions and Answers
Have a Question?
-
Can you splice together different colors of your 3/8-inch led rope lights? We are trying to wrap our palm trees like candy canes - red and white. Thank you in advance for your help. help
Yes, different colors of the exact same style of rope light can be run together as long as the maximum run length is not exceeded. (See specification table above.) A candy cane palm tree sounds like a very fun project!
-
What type of rope light could be wound tighter ? ALso, what were the dolphins made with?

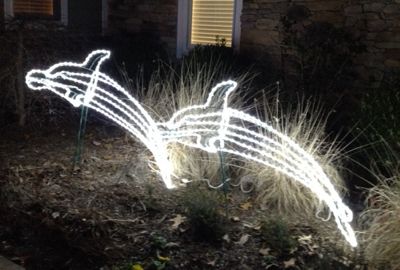

The dolphins were made with this 10mm spool by one of our customers. They illustrate a careful installation around some pretty close angles.
