Specifications and Dimensions
Glass or LED | Glass | Maximum Sets Run in Series | 5 Sets |

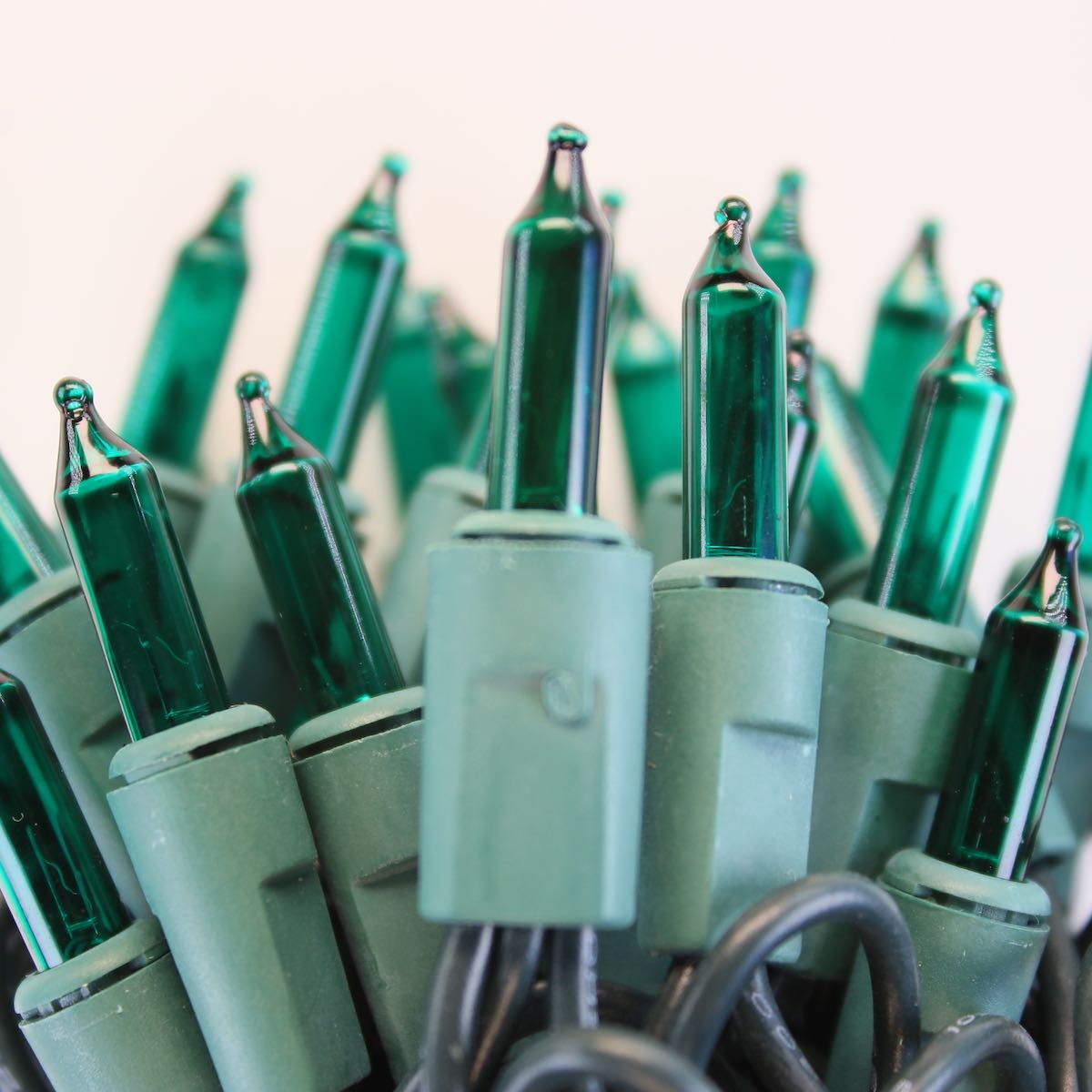

Color of Bulbs | Green | Cert. | UL Approved |
Color of Wire | Green | Warm Up During Operation | Yes |
Number of Bulbs | 100 | Plug Type | Male /Female |
Spacing between bulbs | 2.5 inches | Dimmable | Yes |
Bulb Shape | Traditional Christmas Tree Bulb/Mini Light | Maximum Current | 3 Amps |
Replaceable Bulbs | Yes | Voltage | 120 V |
Total Length | 21 feet, approx. | Power | 40 Watts |
Lit Length | 20 feet 7.5 inches, approx. | Current Draw | .34 Amps |

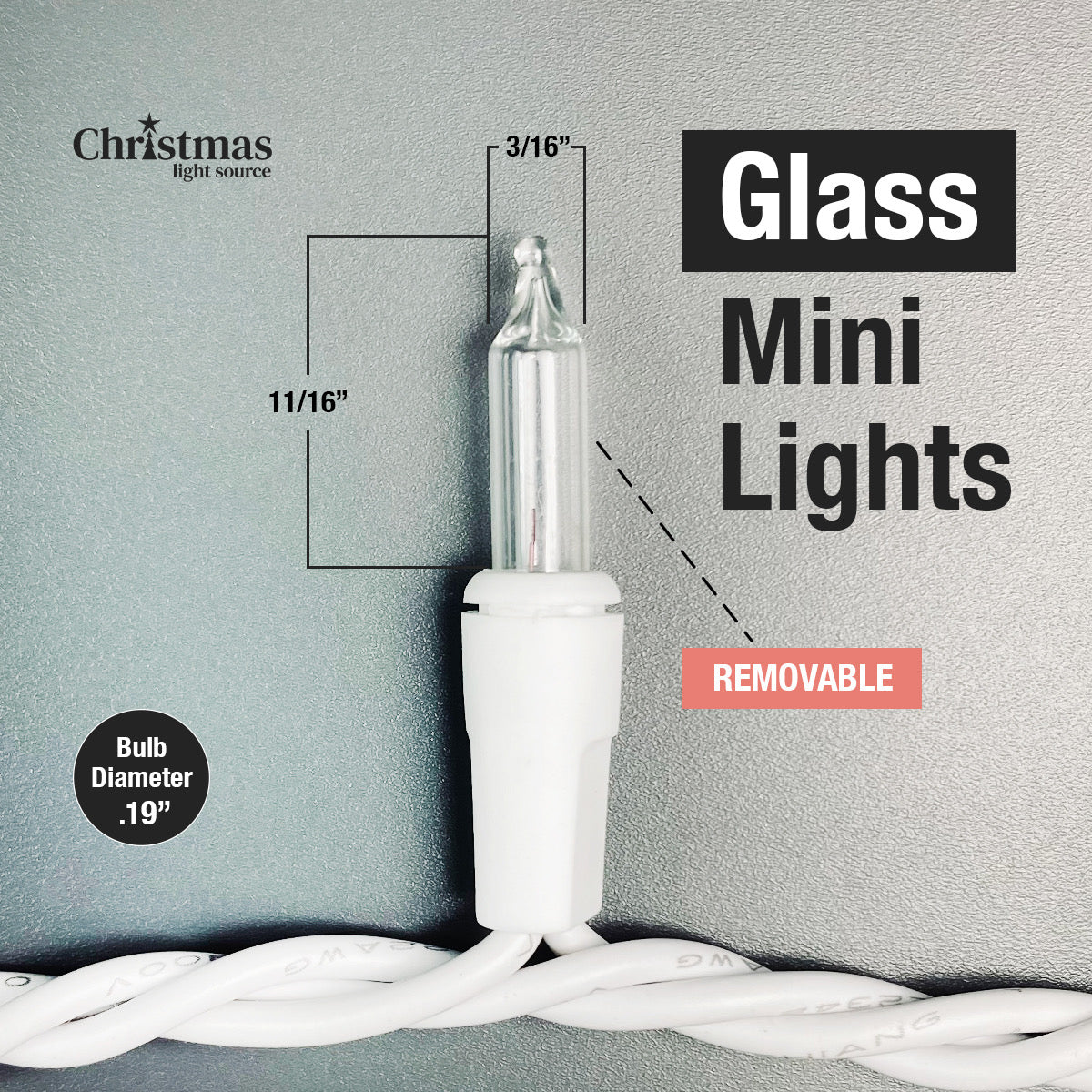

Lead Wire Length (Distance between male plug and first light) | 3 inches | Bulb Height | 11/16 inch |
Tail Wire Length (distance between last bulb and female plug) | 3 inches | Bulb Width | 3/16 inch |
Gauge of Wire | 22 | Bulb Diameter | .19 inch |

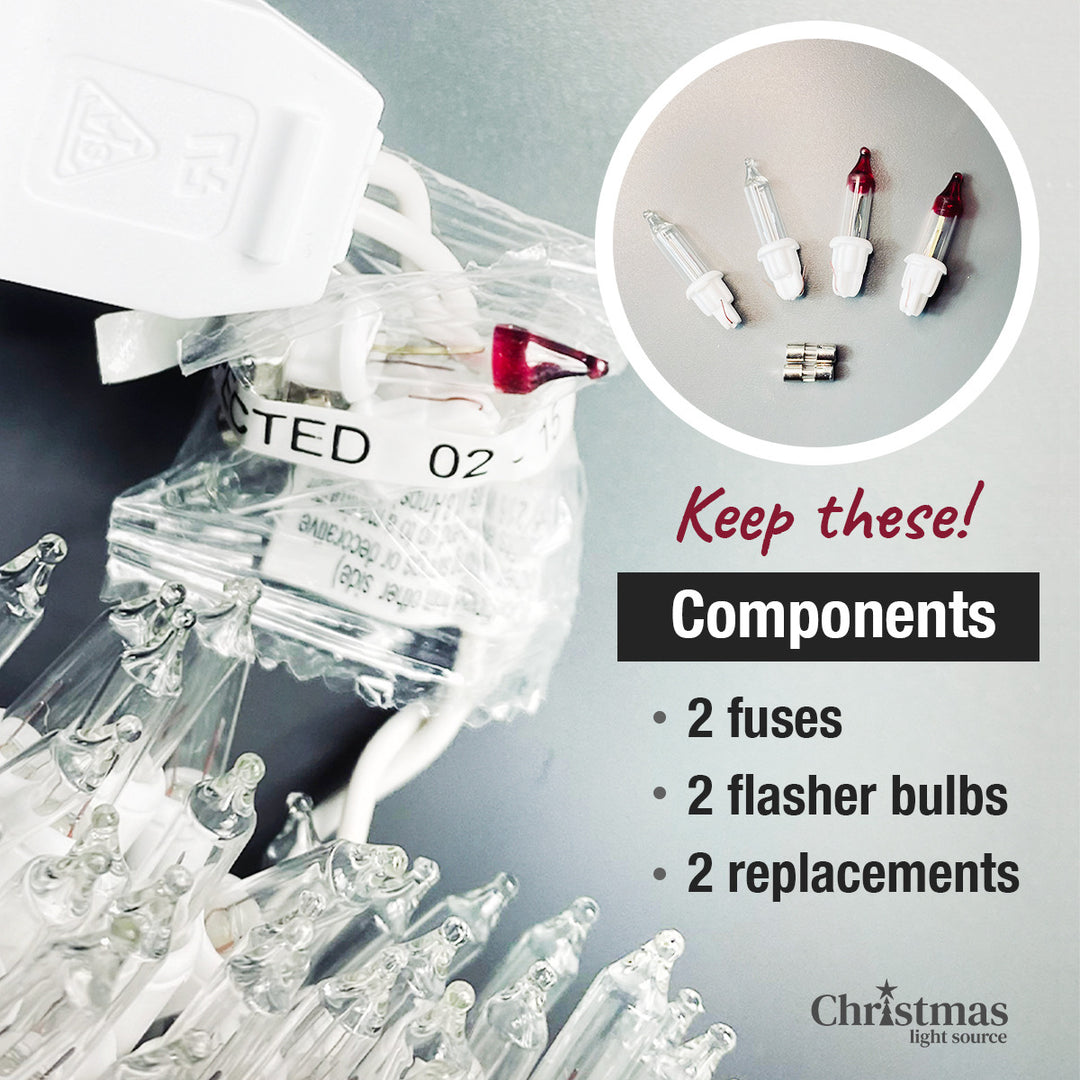

Included | 2 Bulbs (2.5 Volt) 1 Fuse (3 Amp, 125 Volt) 2 Flasher Bulbs |
Potential Lifespan Estimate | 3,000 hours |
Application | Indoor/ Outdoor | Warranty | 90 Days of Normal Seasonal Use |
Additional Info | If a bulb burns out, others stay lit. If a bulb is removed, other bulbs will go out. | Additional Info |
For CA Residents: Prop 65 Notice
Questions and Answers
Have a Question?
-
Since your specs don’t indicate whether the mini light strings are SP1or2, how else can I determine which inline plug to buy
The Gilbert plugs will not work with the mini light strings. Mini light strings are actually 22AWG wired in series and the Gilbert plugs are made for 18AWG parallel wire. We do not know if there are any commercially available plugs that can be used to replace the plugs on a mini light string.
-
Since your specs don’t indicate whether the mini light strings are SP1or2, how else can I determine which inline plug to buy
Here is a blog we wrote on this subject. Check it out! https://www.christmas-light-source.com/blogs/articles/can-i-use-a-gilbert-plug-on-a-set-of-mini-lights
